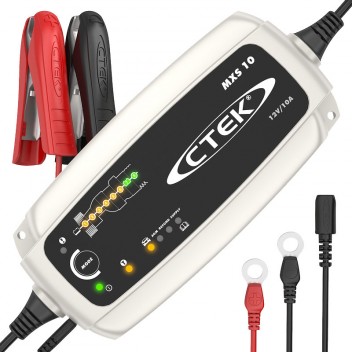

CTEK MXS 10 Battery Charger - 12V



£114.98 ex VAT

  In Stock


As well as having efficient charging and maintenance modes, the CTEK MXS 10 first analyses a battery to find out whether it can accept and retain a charge. If the battery has not been used for a while, it removes harmful lead-sulphate crystals from the battery's plates. Sulphation can "kill" a battery and so this is a very useful feature if you want to extend your battery's life. The equally practical "recon" mode balances the acid concentration in deep discharged batteries. It features a special cold mode to give optimal charging on cold winter days and for demanding AGM batteries. This too will not only ensure that a battery performs gives reliable service but will also extend its working life.

A wide charging range makes this charger suitable for all lead-acid battery types from 20Ah up to 200Ah with additional maintenance capability to 300Ah. Splash proof and dust proof (IP65),  the MXS 10 is easy and safe to use, protecting vehicle electronics with spark-free connection as well as reverse polarity and short circuit protection. The charger can also be used as a power supply for 12V appliances. The MXS 10 comes with a 2-year warranty.

This charger is suitable for permanent installation in vehicles.

For more information on the CTEK MXS 10 please click here


More Information


Manufacturer's product code:56-818
Mains operating voltage - AC Volts:230
Nominal charging voltages - DC Volts standard charging port:12
Nominal charging voltages - DC Volts Auxiliary charging port:N/A
Maximum continuous charging current - Amps:10
Max. Power consumption (AC):N/A
Suitable for battery types: All types of lead-acid battery inc. wet, AGM and GEL.
Suitable for battery sizes - Ah: 20Ah - 200Ah for charging and up to 300Ah for maintenance.
Selectable Charging Programs Lead?Gel/AGM/Acid, LiFePO4:Lead-acid/AGM
Charging characteristic: 8 stage IUoUp, with pulse maintenance mode.
Minimum battery voltage required - Volts:2V
Number of charging outlets:1
Operating temperature rating - ?C: -20 - + 50 Degrees C. Automatic reduction of power at high ambient temperature.
Ambient temperature rating - ?C:N/A
Cooling method:Natural convection
Silent Run Function:N/A
Protection Class / IP rating:IP65
Temperature compensation:yes
Temperature sensor included:yes
Remote control option:No
Automatic Battery Regeneration/Li Auto Wake Up:N/A
Protections:See manual
Built-in charging monitor:LED display
Certification:See manual
Suitable for permanent installation:Yes
Dimensions L x W x H - mm:165 x 61 x 38 mm
Cable length supplied:Clamp connector 40cm, Eyelet connector 40cm, Prewired mains lead 1.9m, Pre wired cable ending in M6 connector 1.9m
Item in Kg:0.8
Warranty - years:2

What's in the box

  • 1 x Ctek 10
  • 1 x temperature sensor
  • 1 x wing nut terminal connector
  • 1 x croc-clips connector
  • 1 x user manual

Customer Questions

Asked by Kevin

Hi ! My total leisure battery amp hours are 220 ( 2x110 ) Although it states the mxs 10 is up to 200 ah, would this still be ok to use ? I dont think ctek do a larger charger that is suitable for AGM batteries ?

Answered by Allen Jenner at RoadPro on November 19th, 2019

200Ah is the charging capacity (from flat) 300Ah is the maintenance capacity.

We don't recommend flattening batteries, so yes the MXS 10 would be suitable for your battery bank.

Asked by Michael

Hi Is it safe to leave connected and charging for long periods over the winter with the battery still connected to the vehicle. I'm worried about the vehicle's electronics etc on my motorhome. It's a 17 plate Peugeot Boxer, Autosleeper Regards Mick

Answered by Andrew Harris at RoadPro on May 18th, 2021

Yes Mick, you can leave the MXS10 on charge for months. The battery will be kept in good condition and the vehicle's electrics won't be affected at all.
