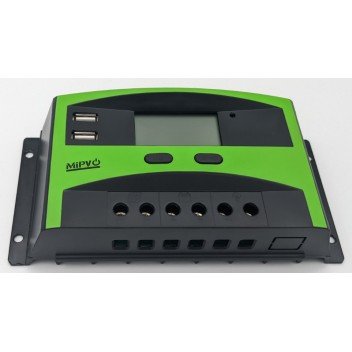

50V / 30 Amp PWM Solar Regulator
C5593
Description
This is a PWM solar regulator that can be used with 12V and 24V battery systems. It's suitable for use with wet lead-acid and gel batteries and solar panels rated at up to 390 Watts and with an operating voltage of up to 50V.
The LCD display gives comprehensive information about the panel's performance as well as the battery's condition.
Specifications
| PRODUCT CODE: | C5593 |
|---|---|
| Manufacturer's product code: | MIPV-PWM-50V-30A |
| MANUFACTURER: | MIPV |
| Regulator type: | PWM |
| Nominal Operating Voltage - DC Volts: | 12V / 24V |
| Suitable for battery types: | Wet lead-acid, AGM & gel |
| For use with solar panels rated at a maximum of: | 390 |
| Max. solar panel voltage - Volts: | 50 |
| Number of charging outputs: | 2 + 5V USB |
| Max. charging current (Leisure battery / Starter battery) - Amps: | 30 |
| Output voltage/s: | Voltage of float charging: 13.8(13V-15V)×1/×2/×3/×4. Voltage of absorption charging: 14.4V(13V-15V) ×1/×2/×3/×4. Voltage of equalized charging: 14.6V(13V-15.5V) ×1/×2/×3/×4 |
| Connection to solar display / monitor: | No |
| Built-in charging monitor: | LCD display |
| Dimensions L x W x H - mm: | 118 X 90 X 47 |
| Certification: | IP30, ISO9001: 2008 Accredited |
| Overcharge Protection: | Yes |
| Reverse Current Protection (during the night): | Yes |
| Protection against Overload, Overtemperature, Short-circuit: | Yes |
| Connection for Temperature Sensor: | No |
| Operating temperature range - ˚C: | Working temperature: -20 - +55 Degrees C, Storage temperature: -30 - +80 Degrees C |
| Note: | Vivid LCD graphic symbolsSimple button operationAutomatic identification of system voltage levelIntelligent PWM charging modeAdjustable charge-discharge protectionAutomatic temperature compensationSettable operation mode of loadBattery reverse-discharge protectionBattery low voltage disconnection(LVD)Battery reverse connection protectionOver current protectionUSB output |
| Display Functions: | LCD Display on regulator |
| Item in Kg: | 0.445 |
| Warranty - years: | 2 |
| weight: | 0.445 |
What's in the box
- 1 x regulator
- 1 x set of instructions
