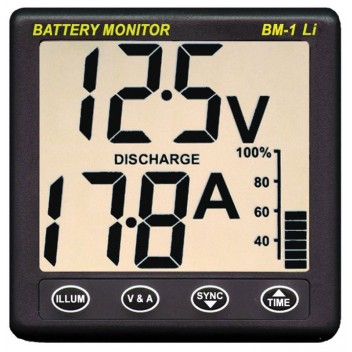

NASA Marine Battery Monitor BM-1Li
The BM-1 Li battery monitor is specifically designed for 12-Volt lithium iron phosphate (LiFePO4) battery installation.
Capable of continuous charge or discharge currents of up to 100 Amps, BM-1 Li displays the service battery Voltage, the charge or discharge current,
the state of charge and the time to achieve full charge during charging or the time remaining during discharge.
This information leads to more efficient use of the battery, which will enhance battery life and reduce the risk of failure.
|Manufacturer's product code:||BM-1 Li|
|Rated Voltage DC Volts:||Supply voltage 8 – 16 Volts DC|
|Dimensions (L x H x D) - mm:||110 x 110 x 70|
|Battery capacities - Ah:||20ah - 600ah|
|Current consumption:||Supply current 1.5 milliamps|
|Shunt size supplied (Amp):||100 AMP shunt link to M8 Ring terminal.|
|Load current - Amps:||Load current 100 AMPS Maximum|
|Charge current - Amps:||Load current 100 AMPS Maximum|
|Type of display:||LCD|
|Lithium (LiFeP04) Compatible:||Yes|
|Notes:||Simple operation – 4 keys to select backlight, Volt/Amp/State of Charge screen,AMP hours or Time to run.|
|Item in Kg:||1.120|
|Warranty period - Years:||2|
What's in the box
- 100 AMP shunt link to M8 Ring terminal5 Metre from display unit to battery – fused and fitted with ring terminals for shunt, fuse holder and M8 ring terminal to battery.Display unitStandard 110mm square Clipper case. High contrast LCD, backlit for night viewing.Minimum voltage visual alarm
