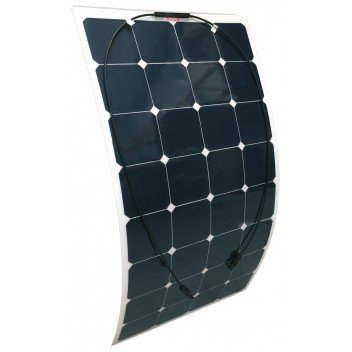

NDS 55W Solarflex Solar Panel
C5883
Description
SOLARFLEX is an innovative range of NDS semi-flexible solar panels with a high degree of efficiency. This series is especially suited for applications where the space available for the installation is curved or weight is a considertation.
SUNPOWER cells are used which, due to their high rate of efficiency - up to 22% - and back contact technology, help to maximize the power output to the battery.
Specifications
| PRODUCT CODE: | C5883 |
|---|---|
| Manufacturer's product code: | SF55WP |
| MANUFACTURER: | NDS |
| Nominal output - DC Volts: | 12 |
| Cell type: | Monocrystalline |
| Number of cells: | 32 |
| Open circuit voltage - V : | 21.9 |
| Maximum power output - Watts: | 55 |
| Current at peak power - Amps: | 2.98 |
| Voltage at peak power - Volts: | 18.56 |
| Dimensions L x W x H - mm: | 580 x 540 x 3 |
| Regulator included: | No |
| Cable included - Metres: | Pre-wired with 3M cable |
| Mounting method: | Use a suitable adhesive. A self-adhesive backing is available at extra cost. (See suggested products) |
| OK to walk on: | Not recommended |
| Certification: | CE |
| Item in Kg: | 1.5 |
| Warranty - years: | 2 |
| weight: | 2.000 |
What's in the box
- 1 x solar panel
