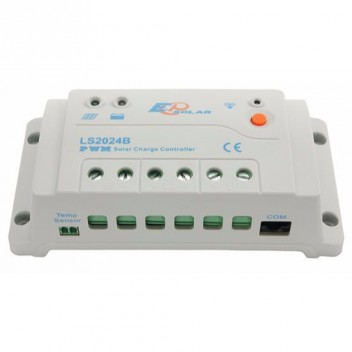

PWR Solar Regulator (20A)



£33.33 ex VAT

  In Stock


Manufacturer's product code:LS2024-B
MANUFACTURER:Hongkong Bright Solar Power
Nominal Operating Voltage - DC Volts:12V / 24V
Suitable for battery types:Wet lead-acid, AGM & gel
Recommended Panel Size in Watts:260
Max. solar panel voltage - Volts:50
Number of charging outputs:2
Max. charging current (Leisure battery / Starter battery) - Amps:20
Output voltage/s:12/24V
Charging characteristic:IUIoU2
Connection to solar display / monitor:Yes
Built-in charging monitor:N/A
Dimensions L x W x H - mm:160 x 82 x 49
Assembly Dimensions L x W x H - mm:147 x 50 x 4.3
Regulator type:PWM
Current consumption :N/A
Short circuit protection:Yes
Overcharge Protection:Yes, Over voltage disconnect 16V
Reverse Current Protection (during the night):Yes
Protection against Overload, Overtemperature, Short-circuit:Yes if temperature sensor is damaged the unit will charge/discharge at the default temperature of 25 Degrees C
Connection for Temperature Sensor:N/A
Operating temperature range - ˚C:-35 - +50 Degrees C
Note:This controller has a daily automatic fault recovery which will reduce the manual operation and can intelligently eliminate the fault by non-actual hardware fault
Display Functions:N/A
Nett weight - kg:0.375
Warranty - years:2

What's in the box

  • 1 x Regulator
  • 1 x Instruction booklet
