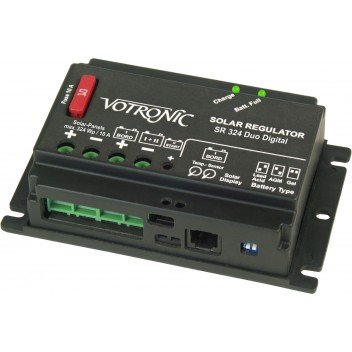

Votronic SR324 24V Dual Regulator
C5584
Description
A 24V regulator rated at 10.0Amps (input). It can be used with panels with an output of up to 300 watts. L.E.Ds show charging state. This model can be connected to a starter battery as well as to the leisure battery.
Note: This unit is not suitable for use with LiFeP04 batteries
Specifications
| PRODUCT CODE: | C5584 |
|---|---|
| Manufacturer's product code: | 6131 |
| MANUFACTURER: | Votronic |
| Regulator type: | PWM |
| Nominal Operating Voltage - DC Volts: | 24 |
| Suitable for battery types: | Wet Lead-acid, AGM & Gel |
| For use with solar panels rated at a maximum of: | 300 |
| Max. solar panel voltage - Volts: | 28 |
| Max. charging current (Leisure battery / Starter battery) - Amps: | 10.0 / 0.9 |
| Charging characteristic: | IUIoU2 |
| Connection to solar display / monitor: | Yes |
| Built-in charging monitor: | LED indicators show: "AES", "Full", "> 80%", "Charging" and "Low Voltage" |
| Dimensions L x W x H - mm: | 116 x 71 x 29 |
| Certification: | CE/ CE, E Test (EMV/automotive regulations) |
| Overcharge Protection: | Yes |
| Reverse Current Protection (during the night): | Yes |
| Connection for Temperature Sensor: | Yes |
| Operating temperature range - ˚C: | -20 - +45 Degrees C |
| Item in Kg: | 0.15 |
| Warranty - years: | 3 |
| weight: | 0.17 |
What's in the box
- 1 x regulator
- 1 x 10a fuse
- 1 x set of instructions
