Description
Article No. 40-484

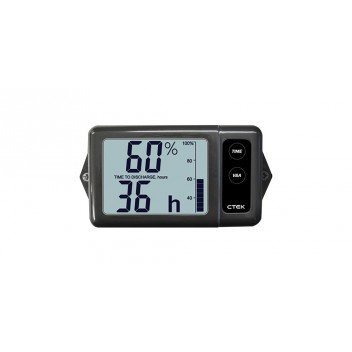

Model Battery Monitor 200a
The unit continually monitors the voltage, the current (charge and discharge) and calculates the state of charge together with the time remaining to charge or discharge the battery.
SUITABLE FOR USE WITH D250SE, SMARTPASS 120S, I1225 & M25
For more information on this unit please click here
More Information
Specifications
| PRODUCT CODE: | C8665 |
|---|---|
| MANUFACTURER: | CTEK |
| Article No.: | 40-484 |
| Rated Voltage DC Volts: | 8 – 16 VDC |
| Dimensions (L x H x D) - mm: | 125 x 62 x 23 mm |
| Battery capacities - Ah: | 5 – 999 Ah |
| Current consumption: | 1.5 mA |
| Shunt size supplied (Amp): | 200 |
| Load current - Amps: | 199 |
| Charge current - Amps: | 199 |
| Type of display: | LCD |
| Notes: | Estimated charge and discharge time remaining Suitable for use with D250SE, SMARTPASS 120S, I1225 & M25 |
| Warranty Notes: | CTEK issues a limited warranty to the original purchaser of the product. Depending on the product, the limited warranty period will vary. The limited warranty is not transferable. The warranty applies to manufacturing faults and material defects. The warranty is void if the product has been handled carelessly or repaired by anyone other than CTEK or its authorized representatives. CTEK makes no warranty other than this limited warranty and is not liable for any other costs other than those mentioned above, i.e. no consequential damages. Moreover, CTEK is not obligated to any other warranty other than this warranty. |
| Warranty period - Years: | 2 |
What's in the box
- CTEK SYSTEM MONITOR 200A Included in the package is a 5m cable from display to battery, with ring terminals for shunt, fuse holder and M8 ring terminal to battery.
