Description
Article no. 56-818
12V | For larger vehicle batteries, supply function

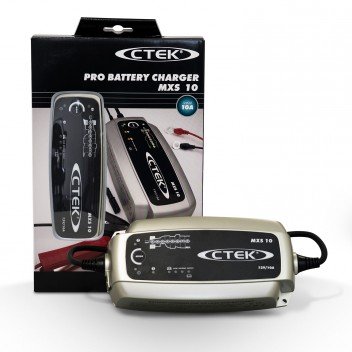

The MXS 10 is a fully automatic 8-step charger that delivers 10A to 12V batteries from 20-200Ah and is also suitable for maintenance charging up to 300Ah. It includes battery diagnosis to establish whether your battery can receive and retain a charge, a Recond mode for restoring and reconditioning stratified and deeply discharged batteries, a winter program for charging in cold weather and an AGM option which maximises the performance life of most Stop/Start batteries. The MXS 10 also has a temperature sensor for optimised charging and it can even be used as a power supply source for 12V equipment.
Features
-
Maintains larger batteries up to 300Ah
-
Easy to read LED display
-
Comes with Connect – Eyelet and Connect – Clamp connectors
-
Splash and dust proof (IP65)
-
Safe spark free operation
-
Reverse polarity protected
-
Short circuit proof
-
Fully automatic ‘connect and forget’ 8 step charging
-
Charges batteries from 20-200Ah
-
Temperature sensor, AGM and Recond programs
-
Power supply for 12V equipment
-
2-year warranty
More Information
Specifications
| PRODUCT CODE: | C8682 |
|---|---|
| Article No.: | 56-818 |
| MANUFACTURER: | CTEK |
| Charger Category: | AC charging |
| Input Voltage - Volts: | 220–240 VAC, 50–60 Hz, 1.4 A |
| Output voltage - Volts: | 14.4/14.7/15.8/13.6 V, 10 A |
| Max. charging current - Amps: | 10 |
| BACK CURRENT DRAIN: | Corresponding to less than 1 Ah/month |
| Battery Temperature Sensor: | Yes included |
| Suitable for battery size - Ah: | 20–300 Ah |
| Suitable for battery types: | 12 V:; WET; MF; Ca/Ca; AGM; GEL |
| Charging Programs: | Automatic 8 Stage |
| Cooling method: | Natural convection |
| Operating temperature range - °C: | -20 ËšC to +50 ËšC |
| Enclosure class: | IP65 (splash and dust proof) |
| Protections: | * Safe spark free operation * Reverse polarity protected * Short circuit proof |
| Warranty Terms: | CTEK issues a limited warranty to the original purchaser of the product. Depending on the product, the limited warranty period will vary. The limited warranty is not transferable. The warranty applies to manufacturing faults and material defects. The warranty is void if the product has been handled carelessly or repaired by anyone other than CTEK or its authorized representatives. CTEK makes no warranty other than this limited warranty and is not liable for any other costs other than those mentioned above, i.e. no consequential damages. Moreover, CTEK is not obligated to any other warranty other than this warranty. |
| Warranty - years: | 2 |
What's in the box
- 1 x MXS 10
- 1 x set of Connect Eyelets M8
- 1 x set of Connect clamps
- 1 x user manual
