Description
Article No. 40-198
12V | Portable workshop power and charging

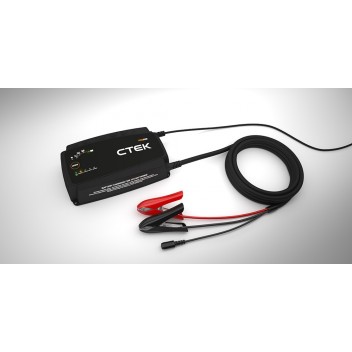

PRO25S is light and portable and ideal for technicians use in the busy workshop. It’s fully automatic so it’s easy to use and its reliable, 12V power supply keeps the vehicle’s stored data safe and prevents damage to sensitive ECUs and other vehicle electronics. It features fast, 8-step charging, temperature compensation for ambient conditions between -20°C and +50°C (-4°F to +122°F), and is suitable for use with any 12V battery, including lithium*. PRO25S features automatic parallel load compensation so power supply and amperage are always constant and accurate, even if an additional load is placed on the battery during diagnostics. It also has a ‘RECOND’ mode to bring deeply discharged lead-acid batteries back to life and a lithium ‘wake up’ mode for batteries with under voltage protection. *) 12V lithium batteries (LiFePO4, Li-Fe, Li-iron, LFP)
Features
-
Up to 25A of battery support
-
12V power supply support for code reading, electrical circuit testing and fault finding
-
Fast, fully automatic 8-step charging
-
‘RECOND’ step for to bring deeply discharged lead-acid batteries back to life
-
Suitable for 12V lead-acid, WET, Ca/Ca, AGM, MF, GEL and lithium* batteries
-
Charger type: 8-step, fully automatic charging cycle
-
Work with all 12V battery types, including Lithium* (LiFePO4)
-
Battery capacity: 40-500Ah (lead-acid); 30-450 Ah (lithium)
-
Low 2V start up voltage for charging
-
Extremely low ripple
-
Automatic parallel load compensation
-
Automatic temperature compensation
-
Degree of protection: IP44
-
Warranty: 2 years
More Information
Specifications
| PRODUCT CODE: | C8685 |
|---|---|
| Article No.: | 40-198 |
| MANUFACTURER: | CTEK |
| Charger Category: | AC charging |
| Input Voltage - Volts: | 220–240 VAC, 50–60 Hz, 2.9 A |
| Output voltage - Volts: | 14.4/15.8/13.6 V, 25 A, lead-acid battery types. 13.8 V/14.4 V/13.3 V, 25 A, LiFePOâ‚„. |
| Max. charging current - Amps: | 25 |
| BACK CURRENT DRAIN: | Corresponding to less than 1 Ah/month |
| Battery Temperature Sensor: | Yes included |
| Suitable for battery size - Ah: | 40–500 Ah, lead-acid battery types. 30–450 Ah, LiFePO₄. |
| Suitable for battery types: | 12 V:; WET; MF; Ca/Ca; AGM; EFB; GEL; LiFePOâ‚„ |
| Charging Programs: | Automatic 8 Step charging |
| Cooling method: | Internal Fan |
| Operating temperature range - °C: | -20 ËšC to +50 ËšC |
| Enclosure class: | IP44 |
| Notes: | * Mains cable length2m (AC cable) * Charge cable length2m, 6 mm2 (DC cable) |
| Protections: | * Automatic parallel load compensation, * Temperature compensation - External charge voltage temperature compensation sensor * Automatic temperature compensation |
| Dimensions (L x W x H) - mm: | 235 x 130 x 65 mm |
| Product Net KG: | Net weight (unit with cables)1.8 kg, Gross weight (unit in box)2.2 kg |
| Warranty Terms: | CTEK issues a limited warranty to the original purchaser of the product. Depending on the product, the limited warranty period will vary. The limited warranty is not transferable. The warranty applies to manufacturing faults and material defects. The warranty is void if the product has been handled carelessly or repaired by anyone other than CTEK or its authorized representatives. CTEK makes no warranty other than this limited warranty and is not liable for any other costs other than those mentioned above, i.e. no consequential damages. Moreover, CTEK is not obligated to any other warranty other than this warranty. |
| Warranty - years: | 2 |
| weight: | 2.640 |
