Description
Article no. 40-190
12V | Portable or mounted power supply and charging

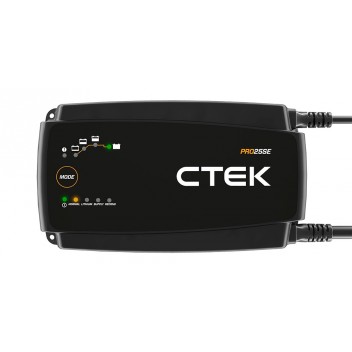

PRO25SE has been designed to be easily carried around or fixed with the supplied wall hanger, so it’s always ready. It’s easy to use with a reliable 12V power supply for code reading, circuit testing and fault finding. The constant supply also ensures that the vehicle’s data isn’t lost and prevents any damage to sensitive electronics or the vehicle’s ECUs. PRO25SE offers fully automatic 8-step charging and maintenance for all lead-acid batteries, including lithium*. It has automatic temperature compensation for ambient temperature in conditions between -20°C and +50°C (-4°F to +122°F). It also features automatic parallel load compensation which makes sure that power supply voltage and amperage are always constant and correct, even if the battery has an additional load placed on it during diagnostic work. *) 12V lithium batteries (LiFePO4, Li-Fe, Li-iron, LFP)
Features
-
Up to 25A of battery support
-
12V power supply support for code reading, electrical circuit testing and fault finding
-
Fast, fully automatic 8-step charging
-
‘RECOND’ step for to bring deeply discharged lead-acid batteries back to life
-
Supplied with heavy duty 6m charging cables and mounting kit
-
Charger type: 8-step, fully automatic charging cycle
-
Work with all 12V battery types, including Lithium* (LiFePO4)
-
Low 2V start up voltage for charging
-
Extremely low ripple
-
Automatic parallel load compensation
-
Automatic temperature compensation
-
Degree of protection: IP44
-
Warranty: 2 years
More Information
Specifications
| PRODUCT CODE: | C8688 |
|---|---|
| Article No.: | 40-190 |
| MANUFACTURER: | CTEK |
| Charger Category: | AC charging |
| Input Voltage - Volts: | 220–240 VAC, 50–60 Hz, 2.9 A |
| Output voltage - Volts: | 14.4/15.8/13.6 V, 25 A, lead-acid battery types. 13.8 V/14.4 V/13.3 V, 25 A, LiFePOâ‚„. |
| Max. charging current - Amps: | 25 |
| BACK CURRENT DRAIN: | Corresponding to less than 1 Ah/month |
| Battery Temperature Sensor: | Yes included |
| Suitable for battery size - Ah: | 40–500 Ah, lead-acid battery types. 30–450 Ah, LiFePO₄. |
| Suitable for battery types: | 12 V:; WET; MF; Ca/Ca; AGM; EFB; GEL; LiFePOâ‚„ |
| Charging Programs: | Automatic 8 Step charging |
| Cooling method: | Internal Fan |
| Operating temperature range - °C: | -20 ËšC to +50 ËšC |
| Enclosure class: | IP44 |
| Notes: | * Mains cable length2m (AC cable) * Charge cable length2m, 6 mm2 (DC cable) |
| Protections: | * Automatic parallel load compensation, * Temperature compensation - External charge voltage temperature compensation sensor * Automatic temperature compensation |
| Dimensions (L x W x H) - mm: | 235 x 130 x 65 mm |
| Product Net KG: | Net weight (unit with cables) 3.200 kg Gross weight (unit in box)3.9 kg |
| Warranty Terms: | CTEK issues a limited warranty to the original purchaser of the product. Depending on the product, the limited warranty period will vary. The limited warranty is not transferable. The warranty applies to manufacturing faults and material defects. The warranty is void if the product has been handled carelessly or repaired by anyone other than CTEK or its authorized representatives. CTEK makes no warranty other than this limited warranty and is not liable for any other costs other than those mentioned above, i.e. no consequential damages. Moreover, CTEK is not obligated to any other warranty other than this warranty. |
| Warranty - years: | 2 |
| weight: | 4.680 |
What's in the box
- 1 x Ctek PRO25SE
- 1 x Wall Hanger 300
