Description
Article No. 40-678
Model Number. Smartpass 120S
Smartpass 120S charges and supplies the battery and service equipment with 120A, separates critical equipment from non-critical to ensuring radio, emergency lights and navigation systems always have power. Smartpass 120S is a 120A power management solution that distributes, controls and maximizes the available power of your alternator to power batteries and service consumers. SMARTPASS 120S handles all 12V batteries between 28-800Ah. The Smartpass 120Ss Battery Guard feature ensures critical equipment such as radio, emergency lights and navigation systems always have power and take priority when the voltage in the service battery is low, disconnecting non-critical consumers. The battery protector of the unit will protect your service battery from total discharge and the built-in overtemperature protection reduces the charging current before the battery temperature is too high. SMARTPASS 120S is compatible with D250SA and D250SE 20A on-board chargers.

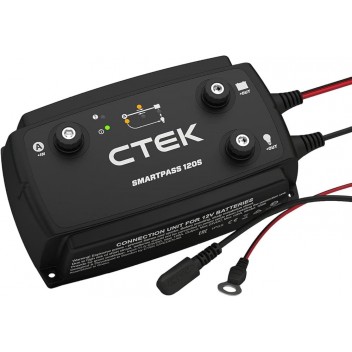

*Unit shown in the product image is for illustration purposes only, the unit supplied is the latest model*
More Information
Specifications
| PRODUCT CODE: | C8663C |
|---|---|
| Article No.: | 40-678 |
| MANUFACTURER: | CTEK |
| Charger Category: | DC Charging |
| Barcode: | 7340103406785 |
| Suitable for use with smart alternators?: | Yes |
| Input Voltage - Volts: | 11.5 to 23V, Max 120A (350A temporarily for 10 seconds.) |
| Max. charging current - Amps: | 120 |
| Charging Ports: | 1 |
| Battery guard cut-in: | 11.5V |
| Battery guard cut-out: | 12.0V |
| Temperature protection cut-in: | 60 degrees C (140 degrees F) |
| Start assistance activation: | Starter battery 6V |
| Trickle charge starter battery: | Starter battery 11.5V to12.6V. |
| Suitable for battery types: | All 12V lead-acid batteries including: Wet, A.G.M, gel, calcium and maintenance free + LiFePO4 lithium batteries |
| Operating temperature range - °C: | minus 20 degrees C to plus 50 degrees C Automatic reduction of power at high ambient temperature. |
| Enclosure class: | IP65 (splash and dust proof) |
| Notes: | Euro6 Compliant |
| Protections: | Temperature compensated charging, Reverse Polarity protection |
| Certification: | Fully certified for use in vehicles |
| Dimensions (L x W x H) - mm: | 192 x 110 x 65mm |
| Product Net KG: | 1.047 |
| Warranty Terms: | CTEK issues a limited warranty to the original purchaser of the product. Depending on the product, the limited warranty period will vary. The limited warranty is not transferable. The warranty applies to manufacturing faults and material defects. The warranty is void if the product has been handled carelessly or repaired by anyone other than CTEK or its authorized representatives. CTEK makes no warranty other than this limited warranty and is not liable for any other costs other than those mentioned above, i.e. no consequential damages. Moreover, CTEK is not obligated to any other warranty other than this warranty. |
| Warranty - years: | 2 |
| weight: | 1.260 |
What's in the box
- 1 x unit
- 2 x connection plates to connect to D250SE
