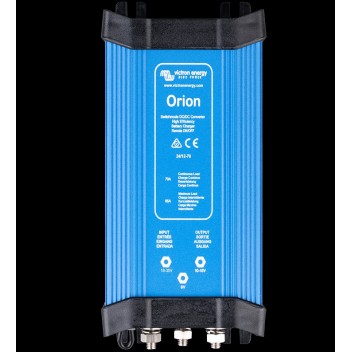

Victron Orion 70A DC-DC 24-12V
C9908
Specifications
| PRODUCT CODE: | C9908 |
|---|---|
| Article No.: | ORI241270020 |
| MANUFACTURER: | Victron |
| Input Voltage - Volts: | 18 - 35V DC |
| Output voltage - Volts: | Adjustable range 10v - 15v (Factory Set at 13.2V) |
| Max. charging current - Amps: | Max 85a, Continuous 70a |
| BACK CURRENT DRAIN: | No Load Current < 20mA |
| Cooling method: | Fan Assisted Cooling (Temperature Controlled) |
| Operating temperature range - °C: | -20 Degrees to +55 Degrees |
| Power reduction: | De-Rate 3% per Degree C above 40 degrees |
| Notes: | Efficiency rating 92%, connection via M6 Bolts |
| Protections: | Under Voltage Shutdown at 14V, Under Voltage Restart at 18V |
| Remote control : | Yes |
| Dimensions (L x W x H) - mm: | 195 x 88 x 65 mm |
| Product Net KG: | 0.900 |
| Warranty - years: | 1 |
| weight: | 1.080 |
What's in the box
- 1 x Unit
