Description
Article No. 67722000

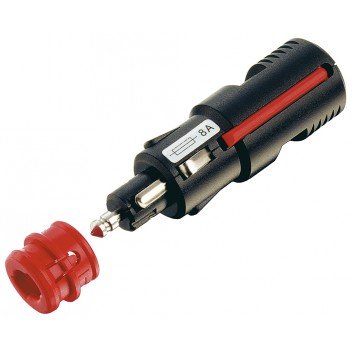

A heavy-duty plug which is suitable for use in both lighter sockets and - with the red collar removed - standard DIN sockets. The plug contains an 8A continental fuse. Cable connection to screw terminals up to 2.5 mm2, secured through screwed strain relief TUV-tested
Specifications
| PRODUCT CODE: | C0202 |
|---|---|
| Article No.: | 67722000 |
| MANUFACTURER: | Pro Car Gmbh |
| Barcode: | 4019524100086 |
| Rated Voltage DC Volts: | 12V / 24V |
| Wire connection method in plug / socket: | Screw terminals for cables up to 2.5 mm2 |
| PORT FOR INSTALLATION mm: | N/A |
| Input power connection: | Universal plug |
| Output power connection: | N/A |
| Approximate cable length metres: | N/A |
| Current rating Amps: | 8 |
| Internal Fuse: | 8 A Ceramic |
| Product Notes: | N/A |
| Dimensions L x W x H - mm: | N/A |
| Installation Depth in MM: | N/A |
| Product Net KG: | 0.050 |
| Warranty - years: | 2 |
| weight: | 0.058 |
What's in the box
- 1 unit with removable red cap
