NDS 165W BlackSolar Panel Kit
C5632KIT
Description
Article No. Blacksolar 165W Panel Kit

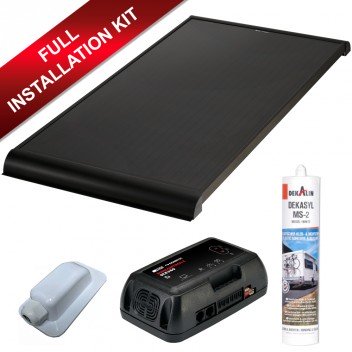

This kit contains everything you should need to install the 165W NDS BlackSolar Panel, The Kit contains 1 x C5632 - 165W BlackSalr Panel, C5708 - Regulator, C548101 - Entry Gland and L0901W Dekasyl MS2
For more information on the individual products supplied please refer to the individual products
Specifications
| PRODUCT CODE: | C5632KIT |
|---|---|
| Barcode: | See Individual Components |
| MANUFACTURER: | Roadpro Ltd |
| Article No.: | SEE INDIVIDUAL COMPONENTS |
| What's In The Box : | SEE INDIVIDUAL COMPONENTS |
| Materials / Construction : | 1 x 165W solar panel with 6M cable attached, 1 x NDS 360 Suncontrol regulator, 1 x Entry Gland, 1 x MS2 White |
| Mounting Options and Information : | C5632 - Integrated Aerofoil mounting brackets |
| Connectivity and Options : | C5708 - Plug in connections for Solar Monitor and Temperature Sensor |
| Screen / Display Information : | C5708 - Optional Display Available See either part number C9446 or C9447 |
| Leads Supplied and approximate Length : | C5632 - Pre Wired with 6M - twin Solar cable |
| Suitable for use with battery types : | C5808 - Wet lead-acid, AGM, gel & LiFePO4 Lithium |
| Solar Panel Cell type : | Monocrystalline |
| Number of Cells : | 32 |
| Panel Rating : | 165w |
| Nominal Voltage : | 12v |
| Operating Voltage / Input Voltage / Maximum Input or Peak Voltage : | C5708 - 12v, 30v maximum input voltage from Solar panels |
| Output Voltage / Watts / Amps / Etc : | C5632 - Output Voltage 12v, * Maximum Power output in Watts 165w, * Open Circuit Voltage 21.60v, * Peak Power in Amps 9.25a, * Peak output in Volts 17.8v, C5708 - Variable according to the battery type |
| Notes : | C5632 - Not Suitable for walking across |
| Certification and IP Ratings : | C5632 - IEC61215, IEC61730 safety standards compliant and ISO9001/ISO14000 Certification, C5708 - CE, C548101 - IP68 |
| Dimensions Approx in mm : | C5632 - 1495 x 680 x 60, C5708 - 151 x 90 x 48, C548101 - 70 x 50 x 140 |
| Warranty : | 24 Months, with the exception of L0901W which is 12 Months |
| Product Weight Net: | 15.100 |
| weight: | 17.370 |
