Description
Article No. PMP122300001

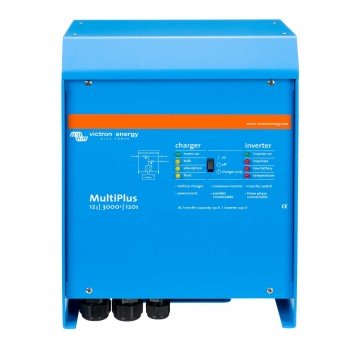

The MultiPlus, as the name suggests, is a combined inverter and charger in one elegant package. Its many features include a true sine wave inverter, adaptive charging, hybrid PowerAssist technology, plus multiple system integration features.
The MultiPlus will prevent overload of a limited AC source, such as a generator or shore power connection. First, battery charging will automatically be reduced when otherwise an overload would occur. The second level will boost the output of a generator or shore side supply with power taken from the battery.
In the event of a grid failure, or when shore or generator power is disconnected, the inverter within the Multi is automatically activated and takes over the supply to the connected loads. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption.
Up to 4 Multis can operate in parallel to achieve higher power output. Three phase or split phase operation is also possible. Please check our datasheets to see which models have paralleling, three phase and split phase capabilities.
When coupled with a GX device (e.g. Cerbo GX) you can monitor and control your Multi and system or systems' locally (LAN) or remotely via the internet from anywhere in the world, using the free VRM app and free VRM portal website. Access can be from a phone, tablet, laptop or PC for multiple operating systems. There is no end to the level of control, from adjusting your Multi to auto starting a backupgenerator and more…
Specifications
| PRODUCT CODE: | C9920 |
|---|---|
| Barcode: | B/C: TBC |
| MANUFACTURER: | Victron |
| Article No.: | ART: PMP122300001 |
| Whats in the box: | 1 x Unit |
| Materials / Construction : | Aluminium |
| Product Colour : | Blue |
| Connectivity and Options : | * Battery Connection Four M8 Bolts (2 Plus and 2 Minus connections), * 230v AC Connection M6 Bolts, *VE.Bus Communication Port, *General Purpose Com Port, *Battery temperature Sensor |
| Screen / Display Information : | Optional display unit Ekrano GX or Cerbo GX, VRM Portal or VRM App |
| Remote / Automatic and Manual Controls : | Remote On/Off |
| Suitable for use with battery types : | All types of battery |
| Operating Temperature : | Minus 40 Degrees C to Plus 65 Degrees C |
| Max Charging Current in Amps : | * Charge Current Lesiure Battery Max 120a, * Current Charge Starter Battery 4a |
| Max Charging Current in Volts : | Charger * Absorption 14.4V, * Float Voltage 13.8v, * Storage Mode 13.2v |
| Cooling Fan or Method : | Internal Fan |
| Nominal Voltage : | 12v |
| Operating Voltage / Input Voltage / Maximum Input or Peak Voltage : | * Voltage Range (VDC) 9.5v - 17v |
| Input Current : | * Multiplus General AC Input - Input Voltage Range 187 - 250v , Input Frequency 50/60Hz *Inverter - Input Current (A DC) 250 / 125 / 65, *Charger AC Input Input Voltage Range 187-265 VAC, Input Frequency 45 - 65 Hz |
| Output Voltage / Watts / Amps / Etc : | 230V AC - Frequency 50Hz, Inverter * Continuos Output at 25 Degrees C - 3000VA, * Continuos Output Power at 25 Degrees C - 2400W, * Output Power at 40 Degrees C - 2200W, * Continuos Output Power at 65 Degrees C - 1700W, * Peak Power - 6000W, * Maximum Continuous Output 11A |
| Standby Consumption Watts : | Inverter, * Zero Load Power 20w, * Zero Load Power in AES Mode 15w, * Zero Load Power in Search Mode 8w |
| Auxillary Output : | Yes 16a |
| Notes : | * PowerControl - Yes, * PowerAssist - Yes, * Programmable Relay |
| Certification and IP Ratings : | * EN-IEC 60335-1, EN-IEC 60335-2-29, IEC 62109-1 *EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 |
| Dimensions Approx in mm : | 444 x 328 x 240 |
| Cable supplied: | 80cm 16mm2 |
| Nominal operating Voltage - Volts: | 12 |
| Output voltage - Volts: | 230 |
| Input connection: | 8mm connection (Hard Wired) |
| Output connection: | Twin UK socket |
| USB socket: | Yes - 2.1A |
| Output wave form: | Pure sine wave |
| Continuous output - Watts: | 1000 |
| Peak output (for a few seconds) - Watts: | 3000 |
| Efficiency - %: | 91 |
| Remote control facility: | Yes - C7685A |
| Protection: | Soft start, Protection against overload and short circuit, Low battery alarm, Protection against polarity inversion and overtemperature |
| Priority switch function: | No |
| Certification: | e marked |
| Dimensions (L x W x H) - mm: | 262.5 x 270 x 107.5 |
| Warranty - years: | 2 |
| Product Weight Net: | 30.000 |
| Weight (Shipping Weight): | 34.500 |
What's in the box
- 1 x inverter
- spare replacement fuse
- 1 x 16mm2 80cm positive cable
- 1 x 16mm2 80cm negative cable
- 1 x user manual
