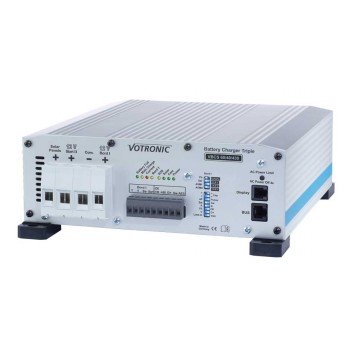

Votronic 3246 Battery Charger VBCS 60/40/430 Triple
C85071
Description
The Votronic 3244 VBCS Triple Charger is a versatile, reliable and efficient 3-way charging solution designed for all battery types, including Gel, AGM, wet lead-acid, and LiFePO4 lithium. Its compact size and straightforward installation make it perfect for campervans and motorhomes, saving loads of space when compared to three separate units. It combines three powerful charging functions (AC, DC, and Solar) into one unit, ensuring efficient battery charging and management whenever they’re needed.
- AC charging from EHU: 40 Amps
- DC (Battery-to-Battery) charging: 60 Amps
- Solar panel capacity (using MPPT regulator): 430 Watts
The VBCS Triple series also features many sophisticated features for maximum efficiency and to ensure compatibility with smart alternators, making it ideal for modern vehicles with complex electrical systems. See the product manual for full details.
product features
-
Battery type adjustable: Gel, AGM, Acid, LiFePO4
-
network operation
-
network detection/switching output for engine start lock
-
AC power limit function
-
12 V/12 V B2B charging converter operation
-
MPP solar charge controller operation
-
switching output AES refrigerator
-
voltage sensor cables starter/board battery
-
lead temperature compensation/LiFePO4 protection
-
Temperature sensor 825 included
-
Automatic battery regeneration/Li Auto Wake Up
-
Lead-on-board battery trainer (pulser), optionally activated
-
Control input of LiFePO4-BMS for charge stop
-
Steckanschluss Display LCD-Charge Control S
-
plug connection VBS2
-
Dimensions (L x B x H): 256 x 219 x 85 mm
Model No. VBCS 60/40/430 Triple CI
Article No. 3246
Specifications
PRODUCT CODE: | C85071 |
---|---|
Manufacturer's product code: | 3245 |
MANUFACTURER: | Votronic |
Suitable for use with smart alternators?: | Yes |
Product Net KG: | 2.900 |
Warranty - years: | 5 |
weight: | 3.000 |
