Description
Article No. SP-KE5040BA-EB

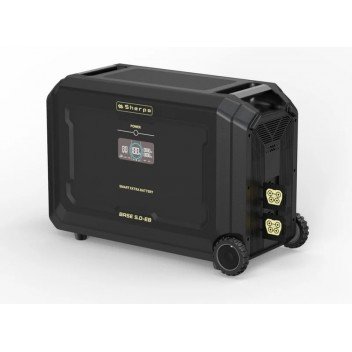

The BASE 5.0-EB is a user-friendly, high capacity Smart Expansion Battery, designed to add energy
storage capacity to your system. Equipped to accept significant solar and hybrid renewable inputs,
you can charge your devices and deliver clean and efficient power. Designed for large expandable
capacity, the BASE 5.0-EB is built for off-grid living and home backup use. The easy link up
system allows you to combine up to 15 units for massive energy storage!
The BASE 5.0-EB Portable Extra Battery incorporates an automotive grade, high-quality lithium iron phosphate battery (LiFePO4), which can be cycled 3500 times before its original capacity is reduced to 80%. Having a capacity of 5048Wh, expandable up to a massive 80,640Wh by linking fifteen to the BASE 5.0, the system offers a significant energy reserve for extended periods of uninterrupted power. The BASE 5.0-EB safeguards overheating and low charge. These limit deep discharge to preserve the longevity of the battery.
The BASE 5.0-EB has two link ports to add an Extra Battery and a BASE 5.0 host unit. This
allows charge and discharge power sharing once the linked units have balanced.
The BASE 5.0-EB will only charge when linked to the BASE 5.0 host.
AC Charging: approximately 3.5 hours from 0% to 100% when connected to a BASE 5.0 host unit, plugged into mains or maximum solar input. The host unit will feed charge to the BASE 5.0-EB via the link cable, whichever method of charge you use.
Specifications
| PRODUCT CODE: | C9523A |
|---|---|
| MANUFACTURER: | Sherpa Power |
| Part Number: | SP-KE5040BA-EB |
| Battery information: | 5040Wh ~ 400Ah capacity, LFP cells with 3500 cycles or 10+ year life(Based on daily use from 100-0%, after which the capacity will be 80% and still usable) |
| Output AC: | N/A |
| Output DC: | N/A |
| Input AC: | (Available via linked host unit only) |
| Input Solar / DC: | (Available via linked host unit only) |
| Charge Time: | Mains (AC): 1.8 hoursSolar (DC): 2.5 hours(Both apply when linked to host unit) |
| Expandable Capacity: | Up to 30,240Wh ~ 2360Ah (based on a 12.8V calculation) |
| Warranty: | 5 Year Standard Warranty |
| weight: | 44.000 |
| PRODUCT WEIGHT: | 44.000 |
What's in the box
- 1 x BASE 5.0-EB, 1 x Link Cable (50cm cable or 80cm including connectors), 1 x User Manual
