Description

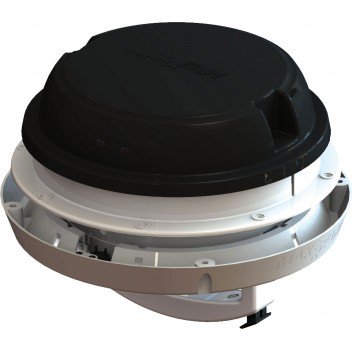

When you need an extractor fan in the bathroom or kitchen of.your campervan, motorhome or caravan but there's not ehough space for a full-sized Maxxfan, the Maxxfan Dome could be exactly what you need. Available in white and black, the Maxxfan Dome can be installed on a roof or a side-wall and needs a space of only 220mm. The Maxxfan Dome runs on 12V and is simple to install and use. See our information sheet for specifications.
- Designed for rooftop or sidewall ventilation
- 16 cm exhaust only fan with manual lift lid
- Locking lid with single hand push button operation
- Removable screens make cleaning a breeze
- For 26 mm roof thickness - extensions up to 150 mm
Packaged with a matching fan guard that must be used for sidewall applications.
More Information
Specifications
| PRODUCT CODE: | J3307 |
|---|---|
| Manufacturers Part code: | MMD-3812B |
| MANUFACTURER: | MaxxAir Solutions |
| Operating voltage - V: | 12 |
| Rain sensor: | NO |
| Manual controls: | SINGLE PUSH BUTTON OPERATION |
| Dimensions of roof unit (L x W x H) - mm : | 260 x 90 |
| Unit Dimensions (W x H x D mm) Boxed: | 270 x 280 x 280 |
| Required roof opening - mm: | requires 6 1/4 inch opening |
| suitable for roofs with thickness - mm: | 1 - 6 inch |
| Start-up current (max.) - Amps: | 2a |
| Remote control supplied: | NO |
| Other features: | For sidewall applications, the included fan guard acts as a rain shield and protects your interior from weather and debris. Additionally, the fan guard provides protection from accidental contact with the blades |
| Product Net KG: | 1.8 |
| Warranty - years: | 1 |
| weight: | 2.100 |
What's in the box
- 1 x unit
- 1 x set of fitting screws
- 1 x fan guard
- 1 x set of instructions
