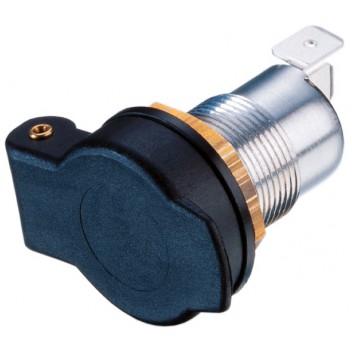

ProCar 53114321 H/d 16A P. Mounted Din Socket + Cap
C0215
Description
The Procar H-D 16A P-Mounted DIN Socket with Cap is a high-quality and durable product that is suitable for use in a variety of applications. It features a heavy-duty design, capable of handling up to 16A of power, making it suitable for use with larger electronic devices such as refrigerators, air compressors, and other high-powered devices.
The Procar H-D 16A P-Mounted DIN Socket Cap is designed to be mounted directly onto the vehicle, making it a permanent and reliable solution for power needs. The socket is made of high-quality materials, ensuring longevity and durability even with frequent use and comes with spring mounted dust cap to protect the socket when not in use.
Specifications
| PRODUCT CODE: | C0215 |
|---|---|
| Manufacturer's product code: | 53114321 |
| MANUFACTURER: | Pro Car Gmbh |
| Rated Voltage DC Volts: | 12V / 24V |
| Wire connection method in plug / socket: | 6.3mm flat terminals |
| PORT FOR INSTALLATION mm: | 18mm |
| Input power connection: | Wired |
| Output power connection: | Din socket |
| Approximate cable length metres: | N/A |
| Current rating Amps: | 16 |
| Internal Fuse: | N/A |
| Product Notes: | Protective cap |
| Dimensions L x W x H - mm: | 17 X 17 X 30 |
| Installation Depth in MM: | 30 |
| Product Net KG: | 0.020 |
| Warranty - years: | 2 |
| weight: | 0.030 |
What's in the box
- 1 unit
