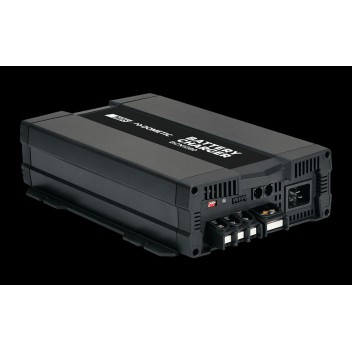

BATTERY CHARGER BCN
When 230Vac is available, it is important to get the maximum charge for on-board batteries in the shortest possible time. The new Battery Charger BCN (AC-DC) can charge up to 3 batteries at the same time, with an optimised 6-step charging curve, and charge current control via Display Bus DTB01 or NDS | Dometic App Mobile for Smartphones.
The Ci-Bus protocol, compatible with N-BUS, allows the BCN to be integrated into the NDS | Dometic energy ecosystem, sharing useful information for charge monitoring. To use the mobile app, all you need is a Tempra Lithium Battery or a Suncontrol2 Bluetooth and Display DTB01 connected to the N-BUS network.
The incredible charging power, up to 80A (depending on model) of the Battery Charger BCN, is the ideal solution to make the most of the characteristic fast charging of Lithium batteries
(LiFePO4), and by selecting the appropriate charging curve, even Lead/Acid batteries (AGM, Gel, Wet) can be safely charged.
Separate power outputs (excluding the one dedicated to the starter battery) allow innovative flexibility of use: the outputs can be used individually, or added together to obtain maximum nominal charging power.
The 25A model has a separate output dedicated exclusively to charging the starter battery and with the OPTICHARGE, algorithm, it is possible to keep the charger always connected to the mains, charging batteries only when necessary, without stressing them.
Specifications
| PRODUCT CODE: | C8750A |
|---|---|
| Barcode: | B/C: 8058093761737 |
| MANUFACTURER: | Dometic NDS |
| Article No.: | MCAPLUS1280 |
| Maximum continuous charging current - Amps: | 80a |
| Suitable for battery types: | AGM, Gel, Wet, LIfePO4 |
| Charging characteristic: | 6 Step Charing Curve |
| Number of charging outlets: | 3 |
| Ambient temperature rating - °C: | Minus 20 Degrees C to Plus 50 Degrees C |
| Cooling method: | Internal Fan |
| Silent Run Function: | Slepp Mode (Noise reduction facility) Via Dip Switch |
| Remote control option: | Compatible with the N-Bus Display or N-BUS App |
| Protections: | Output Side Short Circuit protection, Over Voltage Protection rated at 12V, Battery charger over Temperature, Battery over temperature with sensor fitted |
| Certification: | CE UKCA |
| Dimensions L x W x H - mm: | 303 × 208.5 x 75mm |
| Warranty - years: | 2 |
| Product Weight Net: | 3.900 |
| weight: | 4.490 |
What's in the box
- 1 x Unit
