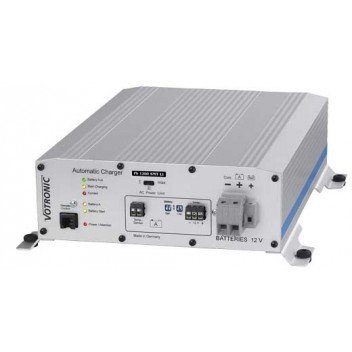

Votronic 3289 Charger Pb 1280 SMT Li

C85015

£706.73

£588.94 ex VAT

Description

  • Special characteristic lines of charging for Lithium LiFePO4 batteries (adjustable, 4-fold)
  • Outstanding charging technology
  • The charging voltage is exempt from peaks, and it is controlled in such a way, that overcharging is excludedd
  • All-automatic continuous operation for permanent readiness for use of the batteries
  • Precise Temperature control and adaptation of the charging by battery temperature sensor, which allows also charging beyond the recommended LiFePO4 battery temperatures below 5 °C and above 35 °C (temperature sensor, Art. 2001 in delivery scope)
  • Separate auxiliary charging port "S" for support charging and conservation of charge of the vehicle's starter battery, max. 2 A
  • Compensation of the voltage loss on the charging cables ensuring exact observation of the charging voltage rates
  • Intelligent microprocessor control observing the simultaneous supply of consumers being connected to the battery
  • Separation of the batteries in case of power failure, overheating, incorrect behaviour (safety relay for each charging port)
  • Adjustable silent run function (reduction at night)
  • 4 Battery capacitiy rates can be adjusted (12 charging programs in total)
  • Inputs for sensor (sense) lines, which can be optionally used in case of charging cables in overlength and/or in case of external diode charging current distributor with volage loss
  • The mains/charging capacity can be reduced in case of low capacity or restricted power supply, such as in case of weakly protected country current supply, generator operation etc. (power limint function)

Specifications

PRODUCT CODE:C85015
Manufacturer's product code:3289
MANUFACTURER:VOTRONIC
Mains operating voltage - AC Volts:(110 V) 230 V AC
Nominal charging voltages - DC Volts standard charging port:12.0V - 13.3V
Nominal charging voltages - DC Volts Auxiliary charging port:12V / 2A
Maximum continuous charging current - Amps:80
Max. Power consumption (AC):1400 W
Suitable for battery types:LiFeP04 lithium cells
Suitable for battery sizes - Ah:100 - 600
Selectable Charging Programs Lead?Gel/AGM/Acid, LiFePO4:4
Charging characteristic:IU1oU2oU3
Minimum battery voltage required - Volts:N/A
Number of charging outlets:1 + S
Operating temperature rating - : -20 Degrees to +45 Degrees
Ambient temperature rating - :N/A
Cooling method:Internal fan
Silent Run Function:Yes
Protection Class / IP rating:I / IP21
Temperature compensation:LiFeP04 Protection
Temperature sensor included:No
Remote control option:Yes
Protections:Voltage Sensor
Built-in charging monitor:Yes. LEDs
Certification: EN 60335?2?29
Suitable for permanent installation:Yes
Dimensions L x W x H - mm:305 x 265 x 90
Cable length supplied:N/A
Note:(110 V) 230 V AC: Operating voltage range: 190 V - 270 V AC / 45-65 Hz with full charging capacity, short-time (5 s) 305 V AC. Works from 90 V AC, at 110 V AC approx. 50 % charging capacity.
Nett weight - kg:3.900
Warranty - years:3

What's in the box

  • 1 x Mains supply cable
  • 1 x Operating Manual
  • 1 x charger
  • 1 x Temperature Sensor
