Description
Article no. RBM500-G3-UK

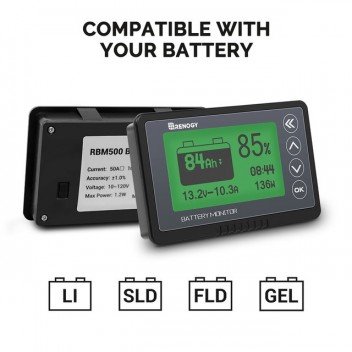

The Renogy Battery Monitor is designed to monitor the performance of most battery types. Its high-precision measurements will eliminate the guesswork from battery usage and enhance your battery bank's performance and lifespan.
It is a universal battery monitor that you can use with voltage ranging from 10V to 120V and up to 500A.
LOW POWER CONSUMPTION DESIGN
The backlight will automatically shut down when the charging current is ＜100mA and only 1 mA Standby Dissipation. This battery monitor is equipped with data storage capacity. It automatically saves the last testing data when its power is off.
PROTECT YOUR BATTERY
This monitor gives you high precision current detection and accurate battery state of charge. You can also set an alarm for high or low current voltage. When the alarm is activated, the backlight and voltage value will be shown on the screen to alert you on what to do when you reach the cut-off voltage.
EASY TO INSTALL
The package includes the LCD interface, 500A shunt, transparent shunt holder, 20 ft shielded wire, and B+ wire. The shunt holder makes it very convenient to mount the shunt while the long shielded wire allows you to monitor the status of your battery from a distance.
NOTE
The Renogy Battery Monitor SHOULD NOT be exposed to high levels of DIRECT SUN LIGHT or be used in an environment with high levels of UV
More Information
Specifications
| PRODUCT CODE: | C8463A |
|---|---|
| MANUFACTURER: | Renogy |
| Article No.: | RBM500-G3-UK |
| Barcode: | X0010X0O4L |
| Rated Voltage DC Volts: | 10-120v |
| Dimensions (L x H x D) - mm: | Display screen dimensions 99 x 61 x 18 |
| Battery capacities - Ah: | 0.1-9999ah |
| Current consumption: | 10 -15 mA in operation, 1-2mA in standby |
| Shunt size supplied (Amp): | 500a |
| Load current - Amps: | 500a |
| Charge current - Amps: | 500a |
| Type of display: | LCD interface with Backlight |
| Lithium (LiFeP04) Compatible: | Yes |
| Notes: | Compatible for use with the following types of battery, Lead Acid, AGM, Gel, LiFePO4, Lithium-Ion, Nickle-Metal Hybrid |
| Boxed Dimensions: | 200 x 150 x 60 |
| Product Net KG: | 0.650 |
| Warranty period - Years: | 1 |
| weight: | 0.750 |
What's in the box
- 1 x LCD display, 1 x 500a Shunt, 1 x Shielded wire (6m Length), 1 x B+ Wire (1m length), 1 x Shunt Holder
