C5710

Article No. 9620013162

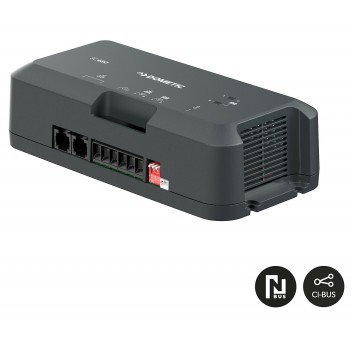

Model No. SC480

The MPPT technology, allows you to maximise the energy from any type of solar panel (12V nominal), performing the most modern charging curves, even for LiFePO4 batteries.

The special OPTICHARGE algorithm developed by the NDS Software Team optimises charging according to the battery needs and extends its life.

SUNCONTROL is equipped with the new N-BUS communication protocol, compatible with Ci-Bus: now you can monitor, control and update all on-board devices from a single NDS Controller.

In addition to charging the leisure battery, this SunControl2 regulator can be installed in such a way that the vehicle's starter battery is maintained as well. 5-stage charging curves (including desulphation) ensure perfect charging in lead-acid batteries and LEDs show the charging status. Unit is supplied with a Temperature sensor

NOTES

• There are two LEDs on the regulator. B1 shows how the regulator is charging the leisure battery and B2 the starter battery.

• When the LEDs are red, the batteries are charging: first in bulk and then absorption mode.

• When the LEDs are amber, the regulator is in reconditioning mode, charging the batteries at 10.5V-12V, with a constant

• current of 2 Amps.

• When the LEDs are green, the battery is fully charged and the regulator is in maintenance mode, charging the battery with a low current and a constant voltage. The maintenance voltage depends on the selected charging curve and this phase times out after 8 hours.

• When the LEDs are off, the solar panel's voltage is too low to charge the batteries, for example, at night.

• NOTE: If the regulator is set for a lithium battery, the LEDs will stay off when the battery is fully charged. In this case, the device turns off and starts charging again only when the battery voltage goes down to 13.45V and only if there is sufficient sun for the panel to operate.
