Description
Article No. SCC110020160R

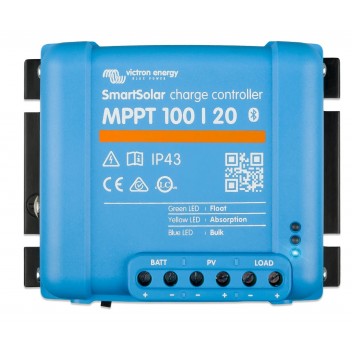

The SmartSolar MPPT is packed with advanced technology to get the most out of your solar panels whilst protecting your batteries. It operates at 98% efficiency with natural cooling and is engineered to withstand the toughest conditions.
Its lightning-fast maximum power point tracking converts all available sunlight into useful energy. Its charge algorithms enhance power output and extend battery life by intelligently managing charging cycles. Built-in SafetyShield+ features such as over-temperature, short-circuit, and reverse polarity protection safeguard your batteries from potential issues.
Simply put: the SmartSolar MPPT is the smartest solar charge controller under the sun.
Specifications
| PRODUCT CODE: | C9911 |
|---|---|
| Barcode: | B/C: TBC |
| MANUFACTURER: | Victron |
| Article No.: | ART: SCC110020160R |
| Colour: | Blue |
| Regulator type: | MPPT |
| Nominal Operating Voltage - DC Volts: | 12V, 24V, 48V |
| Suitable for battery types: | All types of battery |
| For use with solar panels with a maximum power rating (Watts) of: | 290w (on 12V), 580w (on 24v), 1160w (on 48v) |
| Max. solar panel voltage - Volts: | 100V |
| Max. charging current (Leisure battery / Starter battery) - Amps: | 20A |
| Output voltage/s: | * Charge Voltage absorption Default settings 14.4v / 28.8v / 57.6V adjustable, * Charge Voltage Float Default setting 13.8v / 27.6v / 55.2v adjustable |
| Connection to solar display / monitor: | Display through Victronconnect App or Smart sense monitor |
| Bluetooth Enabled: | YES |
| Assembly Dimensions L x W x H - mm: | 100 x 131 x 60 mm |
| Protection Fuse Rating Amp: | 20a |
| Certification: | Protection Category IP43 -(electronic components), IP22 (connection area) |
| Operating temperature range - Degrees C: | Minus 30 to Plus 60 Degrees C (full rated output up to 40 Degrees C) |
| Warranty - years: | 5 |
| Product Weight Net: | 0.650 |
| weight: | 0.750 |
What's in the box
- 1 x Unit
