Votronic 0244 LED Tank Display HE 420
The LED Tank Display HE is a special development for heavy- duty use in fire-fighting vehicles, and it serves for exact indication of the tank level in the vehicle. As panel version, it can be installed in display panels. It is available with two standardized measuring signals: 0...10 V or 4...20 mA. Thus, the unit is suitable for the VOTRONIC Tank-Sensor FW, as well as for transmitters of other manufacturers with identical standard signals.

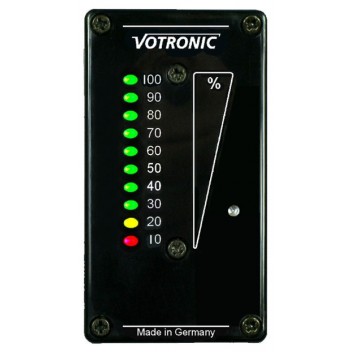

The tank level is represented by means of 10 super-bright light-emitting diodes in form of a continuous tricolour luminous bar allowing convenient reading of the tank level. A photocell controls the brightness of the display in such a way, that dazzling at night is avoided and that the readability is excellent, even in case of direct sunlight during the day or view from an unfavourable angle. A particular advantage is the compact design and the small mounting depth. Simple parallel connection of up to 4 LED Tank Displays HE 010 allow a control of the tank level at almost any location of the vehicle. The display unit is sealed water-tightly, it is vibration-proof and it is protected against reverse battery and overvoltage.
The LED Tank Display HE 420 can also be operated with sensors 4...20 mA, and it is connected to the negative pole at the input side.
This product is specifically designed for use in emergency response vehicles and not compatible with motorhome or caravan systems
|Manufacturer's product code:||0244|
|Item in Kg:||0.400|
|Warranty period - Years:||3|
