Camera systems for Motorhomes Caravans Vans & Trucks > Camos Jewel Camera Systems

For almost any motorhome, caravan or van with a blind spot at the back, Camos's "Jewel" rear-view camera system is the neatest and most effective way of getting rearward vision, both when driving forward and when reversing.
Up until now, if you wanted to be able to see what was going on behind your vehicle when driving normally and when reversing, the only options were a camera with either twin lenses or a motor to change the camera's viewing angle. Neither system is ideal: motorised cameras tend to be expensive and can fail, while twin-lens models are either expensive or clunky looking and of poor quality.

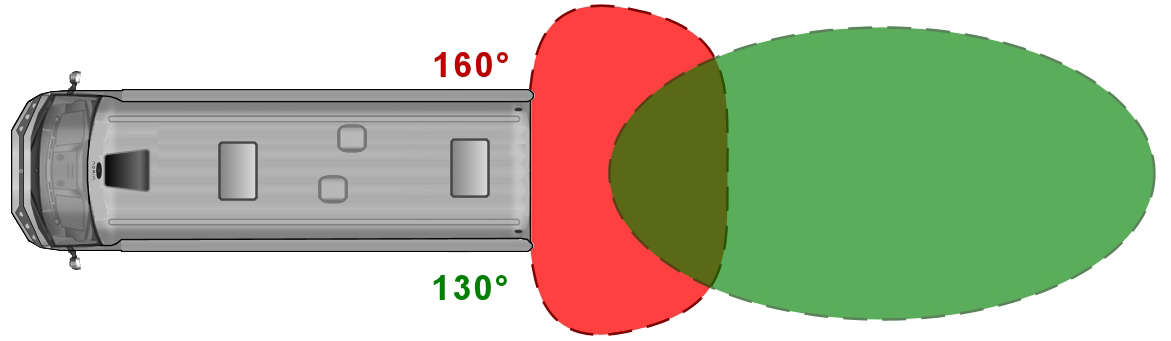

"Jewel" systems change views depending on whether the vehicle is in a forward or reverse gear and yet only have one lens and no moving parts. They're very discreet and, being made by Camos, you can be assured that they are very well made and will last for many years. How do they work? Ingenious software is how and the results are amazing.
There's a choice of 4 different monitors for "Jewel systems", 3 are dash-mounted and there's a 7" mirror-mounted model. If you wanty to connect a Jewel camera to a radio head unit, we have an adaptor cable which will allow you to do just that. Whichever combination you choose, you'll get a high quality rear-view camera system which can be very neatly installed and which looks great on your motorhome. The price is right too!
Adria have installed Camos camera cables in all their "C" class and "A" class motorhomes (except for models in the Sun Living range) since 2015. This means that, if you want a Jewel camera system or any other Camos camera system, you don't need to buy the cable and installation is much easier and quicker.

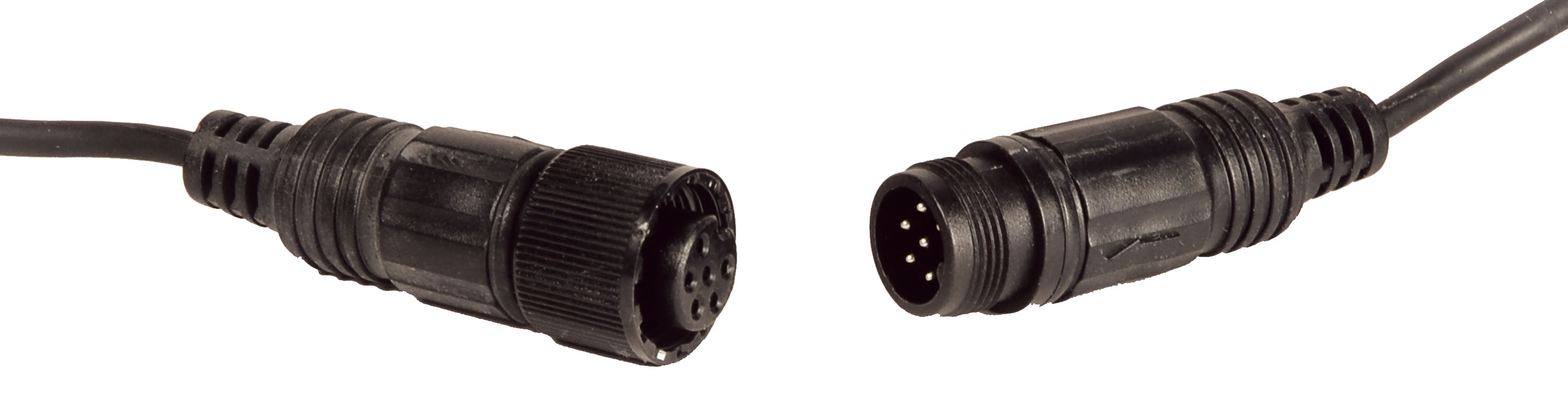

On the right you can see the cable connections for all Camos Jewel camera systems.

Camos Jewel camera sub-bracket
PRODUCT CODE: | D4862G |
---|---|
Article No.: | SUN-BRACKET |
MANUFACTURER: | Camos IMC GmbH |
What's in the box: | 1 X SUB BRACKED FOR v2 JEWEL CAMERA |
Product Net KG: | 0.015 |
Warranty - years: | 1 |
weight: | 0.020 |
D4862G
In Stock

Camos Brake-Light Jewel Camera - CSM-4518M
PRODUCT CODE: | D4863 |
---|---|
Article No.: | 812017 |
MANUFACTURER: | Camos IMC GmbH |
What's in the box: | 1 x Jewel Camera;1 x brake light bracket;1 x screw set;1 x manual |
Nominal operating Voltage of system - V: | 12 |
Camera housing: | Waterproof Plastic |
Camera Type: | 1.3 Mega Pixel CMOS |
Viewing Angle (D) Diagonal (H) Horizontal (V) Vertical: | Drive view 80(H) 60 (V) 95 (D) Reverse view 120(H) 90 (V) 140 (D) |
Minimum Illumination: | 0.2Lux (F=2.4) |
I.R. illumination camera: | No |
Heater in camera: | No |
Operating temperature: | -35 Degrees C to 75 degrees C |
Camera protection rating: | IP69 |
Product Net KG: | 0.665 |
Warranty - years: | 2 |
weight: | 0.750 |
D4863
In Stock

PRODUCT CODE: | D4871 |
---|---|
Article No.: | CM-510 |
MANUFACTURER: | Camos IMC GmbH |
What's in the box: | 5" dash monitor; 1 x petal stand; 1 x connection cables |
Nominal operating Voltage of system - V: | 12 |
Current consumption : | 300mA |
Operating temperature: | -30 degrees to +70 degrees |
Monitor type: | 5" Digital TFT LCD Monitor |
Audio Signal: | Mono |
Language selection: | Yes |
Input system: | Auto (NTSC/PAL) |
Screen specification: | 16:9 |
Inputs: | Pre-wired Connection |
Monitor dimensions - mm: | 140 x 83 x 20 |
Product Net KG: | 0.58 |
Warranty - years: | 2 |
weight: | 0.600 |

PRODUCT CODE: | D4872 |
---|---|
Article No.: | CM-720 |
MANUFACTURER: | Camos IMC GmbH |
What's in the box: | 7" dash monitor; 1 x petal stand; 1 x connection cables |
Nominal operating Voltage of system - V: | 12 |
Current consumption : | 300mA |
Operating temperature: | -30 degrees to +70 degrees |
Monitor type: | 7" Digital TFT LCD Monitor |
Audio Signal: | Mono |
Language selection: | Yes |
Input system: | Auto (NTSC/PAL) |
Screen specification: | 16:9 |
Inputs: | Pre-wired Connection |
Monitor dimensions - mm: | 187 x 113.5 x 26.5 |
Product Net KG: | 0.89 |
Warranty - years: | 2 |
weight: | 0.900 |
D4872
In Stock

Camos Trailer Connection Cable
PRODUCT CODE: | D4873 |
---|---|
Article No.: | 1615H |
MANUFACTURER: | Camos IMC GmbH |
Product Net KG: | 1.010 |
Warranty - years: | 1 |
weight: | 1.100 |

7" Mirror Monitor + Adaptor for Camos Jewel System - kit
PRODUCT CODE: | D4853 |
---|---|
Article No.: | 7" Mirror Monitor |
MANUFACTURER: | EWT Automotive Technologies |
What's in the box: | 1 x Screen;1 x Remote control:1 x Jewel adaptor lead |
Nominal operating Voltage of system - V: | 12 |
Monitor type: | 7" mirror-mounted |
Audio through screen: | NO |
Product Net KG: | 0.630 |
Warranty - years: | 2 |
weight: | 0.750 |

Camos Phono Adaptor Cable - DNR-031A
PRODUCT CODE: | D4874 |
---|---|
Article No.: | 1625L |
MANUFACTURER: | Camos IMC GmbH |
Product Net KG: | 0.075 |
Warranty - years: | 1 |
weight: | 0.080 |

Monitor Adaptor Cable for Camos Jewel Camera
PRODUCT CODE: | D4859 |
---|---|
Article No.: | 747017 |
MANUFACTURER: | Camos IMC GmbH |
What's in the box: | 1 unit |
Product Net KG: | 0.040 |
Warranty - years: | 2 |
weight: | 0.060 |

Camos 13M Cable for CM-49 & Jewel Cameras
PRODUCT CODE: | D4857C |
---|---|
Article No.: | DDC-024C-S |
MANUFACTURER: | Camos IMC GmbH |
What's in the box: | 1 unit |
Cable supplied - M: | 13 |
Product Net KG: | 0.695 |
Warranty - years: | 2 |
weight: | 0.700 |
D4857C
In Stock


18M Cable for Camos Jewel Systems
PRODUCT CODE: | D4861J |
---|---|
Article No.: | DDC-024C |
MANUFACTURER: | Camos IMC GmbH |
Cable supplied - M: | 18 |
Product Net KG: | 0.670 |
Warranty - years: | 2 |
weight: | 0.680 |
D4861J
In Stock

Loom Box for "Jewel" Mirror Monitor
PRODUCT CODE: | D4848F |
---|---|
Article No.: | 3156 |
MANUFACTURER: | Camos IMC GmbH |
What's in the box: | 1 Unit for use with pre 2016 Jewel Kits |
Product Net KG: | 0.125 |
Warranty - years: | 1 |
weight: | 0.250 |
D4848F
In Stock


7" Mirror Monitor for Camos Rear-View Systems
PRODUCT CODE: | D4852 |
---|---|
Article No.: | 7" Mirror Monitor E-CL-7M |
MANUFACTURER: | EWT Automotive Technologies |
What's in the box: | 1 Unit |
Nominal operating Voltage of system - V: | 12 |
Monitor type: | 7" mirror-mounted |
Audio through screen: | NO |
Product Net KG: | 0.620 |
Warranty - years: | 2 |
weight: | 0.700 |
D4852
In Stock
