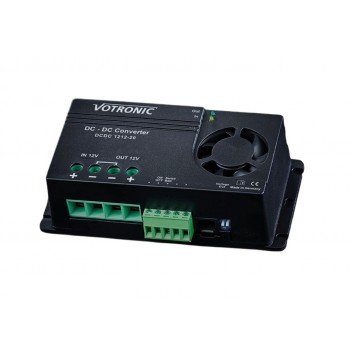

Votronic 3335 DC / DC Converter DCDC 1212-20
C85083
Description
DC/DC transformers allow the safe operation of consumers with voltage rates that are differing from the Leisure bank voltage in the vehicle. For instance, many products of the information, entertainment or navigation technology are almost exclusively only available in 12V technology. Then, an operation with 24V board mains supply is possible by means of a suitable DC/DC transformer from 24V to 12V, without requiring to install an own 12V battery circuit.
Specifications
| PRODUCT CODE: | C85083 |
|---|---|
| Manufacturer's product code: | 3335 |
| MANUFACTURER: | VOTRONIC |
| Input Voltage - Volts: | 12V (9-16) /24A |
| Output voltage - Volts: | 12.5V,13.5V (adjustable) |
| Output current - Amps (Constant): | 20A |
| Output current - Amps (Peak): | 27A |
| Galvanic Insulation: | Yes |
| Control Input D+, Ignition or alike: | Yes |
| Voltage sensor starter battery: | Yes |
| Mark of Conformity: | CE, E Test (EMV/automotive regulations) |
| Protection rating: | IP21 |
| Input connection: | Hard wired terminals 4-10 mm2 |
| Dimensions mm: | 145 x 67 40 |
| Item in Kg: | 0.270 |
| Warranty period - Years: | 3 |
| weight: | 0.270 |
What's in the box
- 1 x Voltage transformer
- 1 x manual
