C7679B

Article No. 9620000195

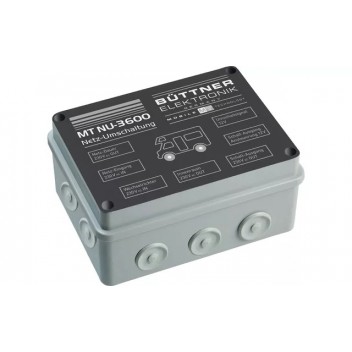

Intelligent mobile home network priority switching with excellent switching capacity. Suitable for all sine wave inverters where there is no integrated network switching or where the consumers connected would cause this to overload. Network switching ensures the optimum 230V supply is always available from the internal sockets - either via the on-shore mains network, if this is being supplied at the campsite, or autonomously via an inverter. A 230 V output can also be enabled. Controlled via an MT 5000iQ battery computer or any 12V control signal (NOT SUPPLIED). So when there is a power surplus (e.g. solar), even if there is no mains connection, an electric bike charger could be enabled on board and charged via the inverter or, if there is sufficient charging capacity the internal air conditioning could be used while travelling.

The following connection options are available:

• input mains/on-shore power
• input inverter
• output for charger and refrigerator etc.
• output for internal sockets
• output 230V driven by 12 V
• signal output for operating status

Technical data

Input voltage: 230 V, 16 A (3600 VA) // IP55
