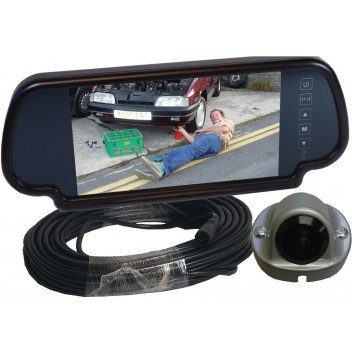

Camos Jewel Plus V2 Camera Cable & 7" Mirror Monitor Kit
D4862
Description
Article No. 7" Mirror Monitor + 747017 + 1615V + 1305C-W/O
This is our most popular rear-view camera kit and is ideal for most motorhomes. With a 7" mirror-mounted monitor and a Camos Jewel camera, it gives excellent vision behind the vehicle, both when you're reversing and driving normally. To see for yourself how the system performs, watch the video.
This complete kit includes a 7" Mirror Monitor, Monitor Connection Cable, 13M Camos connection Cable and V2 Jewel Camera
Please note stocks of this kit are in short supply once we have sold out of our available stock we will be unlikely to get further stocks, this unit is due to be replaced shortly by a new system and deatils will be forthcoming as soon as we have these.
Specifications
| PRODUCT CODE: | D4862 |
|---|---|
| Article No.: | 5535N |
| MANUFACTURER: | Camos IMC GmbH |
| Nominal operating Voltage of system - V: | 12 |
| Camera housing: | Waterproof Plastic |
| Camera Type: | 1.3 Mega Pixel CMOS |
| Viewing Angle (D) Diagonal (H) Horizontal (V) Vertical: | Drive view 80(H) 60 (V) 95 (D) Reverse view 120(H) 90 (V) 140 (D) |
| Minimum Illumination: | 0.2Lux (F=2.4) |
| I.R. illumination camera: | No |
| Heater in camera: | No |
| Operating temperature: | -20 degrees C to 60 degrees C |
| Camera dimensions (W x D x H) - mm: | 60 x 53 x 35 |
| Cable supplied - M: | 13 |
| Camera protection rating: | IP68 |
| Monitor type: | 7" mirror monitor |
| Screen specification: | 16:9 Wide screen |
| Audio through screen: | NO |
| Inputs: | Pre-wired Connection |
| Monitor dimensions - mm: | 255 x 110 x 30 |
| Product Net KG: | 1.728 |
| Warranty - years: | 2 |
| weight: | 1.730 |
What's in the box
- 1 x User manual
- 1 xmirror monitor
- 1 x remote control
- 1 x camera extension cable
- 1 x Camera
- 1 x power loom
- 1 x connection cable
