Camos Jewel Plus V1 Camera Cable + 7" Mirror Monitor: Kit
D4861
Description
Article No. 5535
Camos V1 with Mirror Monitor Kit
This camera system from Camos uses clever electronics to switch views on the monitor. This unique technology lets you see back down the road when you're driving and, when you select reverse gear, shows what's directly behind the vehicle.

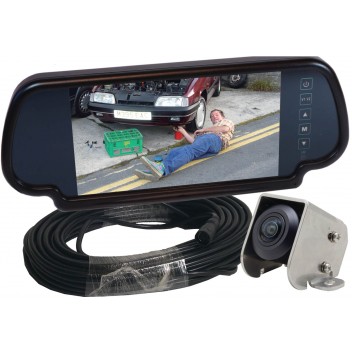

This complete kit includes a 7" Mirror Monitor, Monitor Connection Cable, 13M Camos connection Cable and V1 Jewel Camera
Please note we only have a limited number of these unts left in stock
Specifications
| PRODUCT CODE: | D4861 |
|---|---|
| Article No.: | 5535 |
| MANUFACTURER: | Camos IMC GmbH |
| Nominal operating Voltage of system - V: | 12 |
| Camera housing: | Alloy / Stainless Steel |
| Camera Type: | 1.3 Mega Pixel CMOS |
| Viewing Angle (D) Diagonal (H) Horizontal (V) Vertical: | Drive view 80(H) 60 (V) 95 (D) Reverse view 120(H) 90 (V) 140 (D) |
| Minimum Illumination: | 0.2Lux (F=2.4) |
| I.R. illumination camera: | No |
| Heater in camera: | No |
| Operating temperature: | -20 degrees C to 60 degrees C |
| Camera dimensions (W x D x H) - mm: | 60 x 40 x 45 |
| Cable supplied - M: | 13 |
| Camera protection rating: | IP68 |
| Monitor type: | 7" mirror monitor |
| Screen specification: | 16:9 Wide screen |
| Audio through screen: | NO |
| Inputs: | pre-wired connection |
| Monitor dimensions - mm: | 255 x 110 x 30 |
| Product Net KG: | 1.728 |
| Warranty - years: | 2 |
| weight: | 1.800 |
What's in the box
- 1 x User manual
- 1 xmirror monitor
- 1 x remote control
- 1 x camera extension cable
- 1 x Camera
- 1 x power loom
- 1 x connection cable
